Products Description

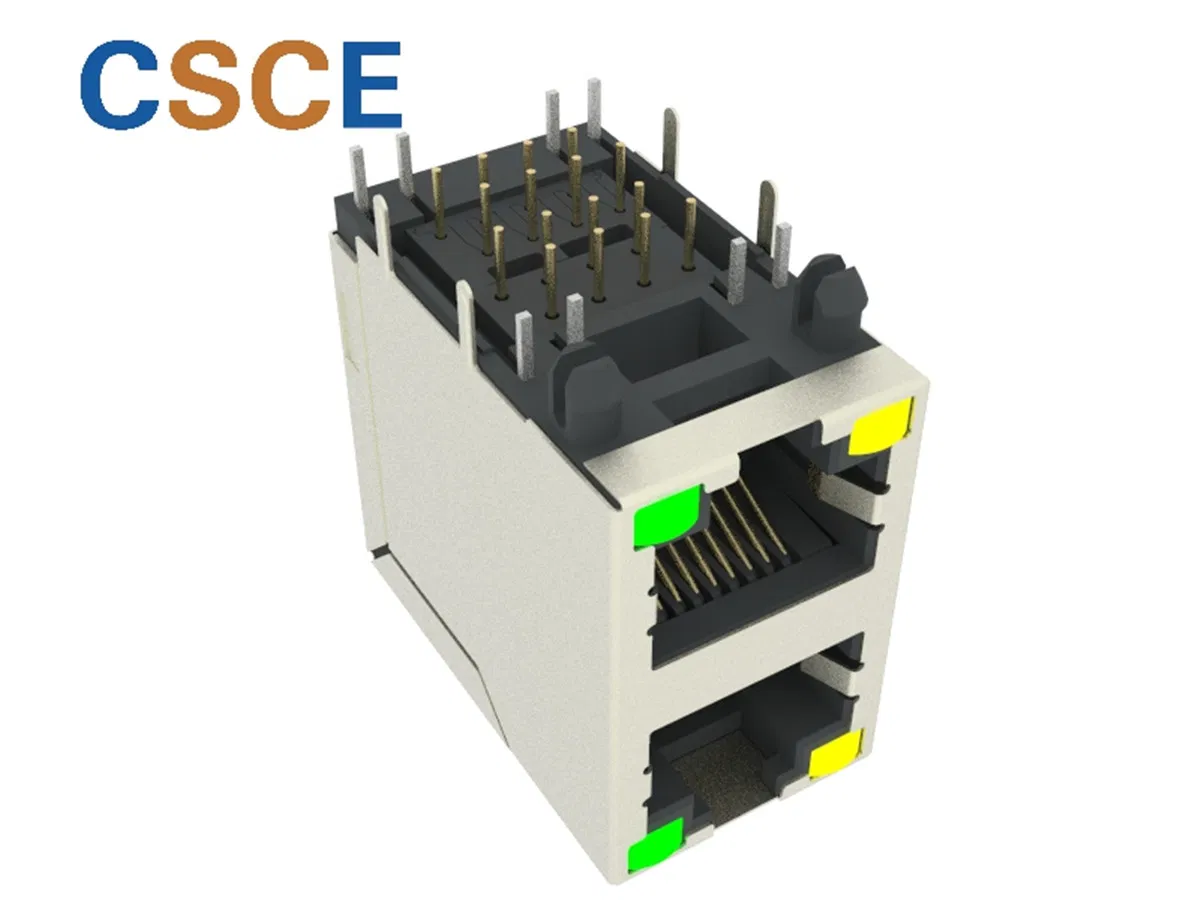

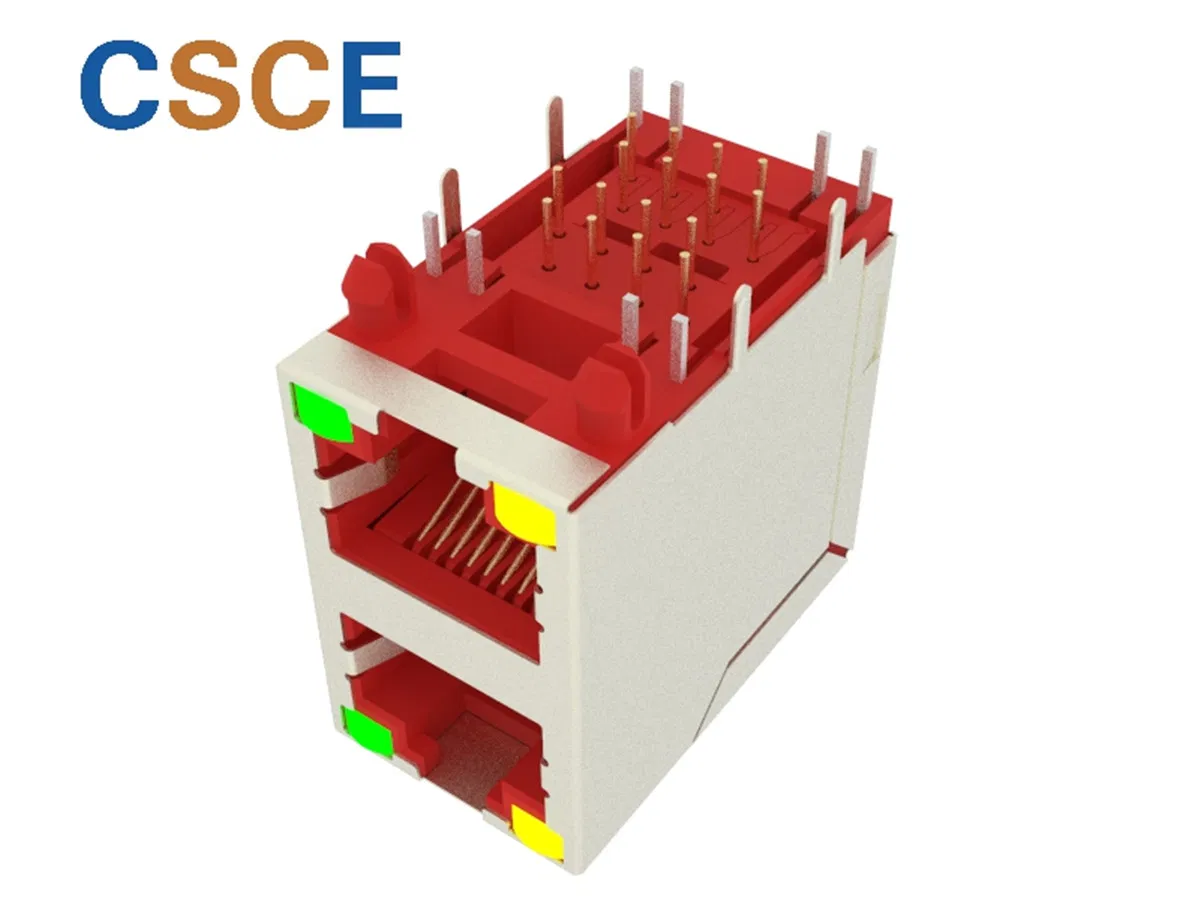

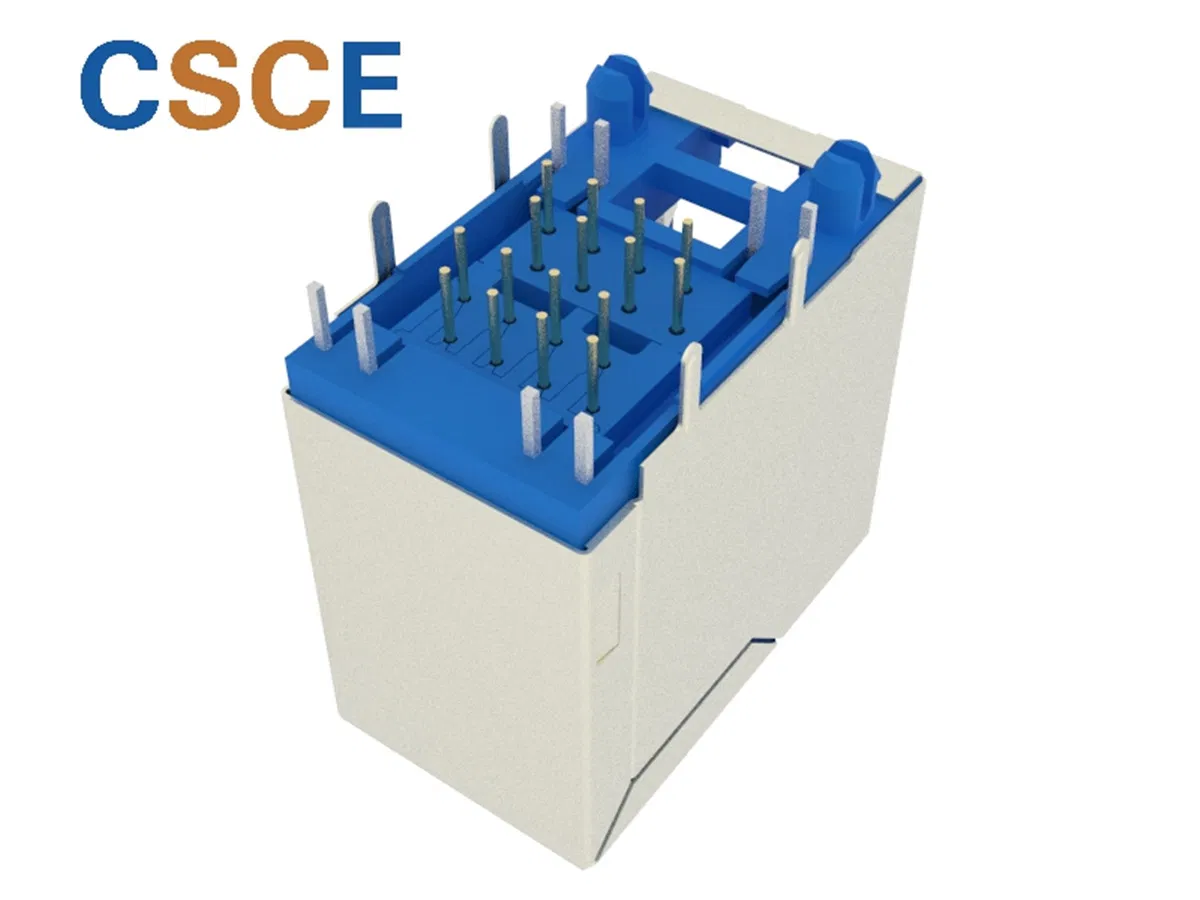

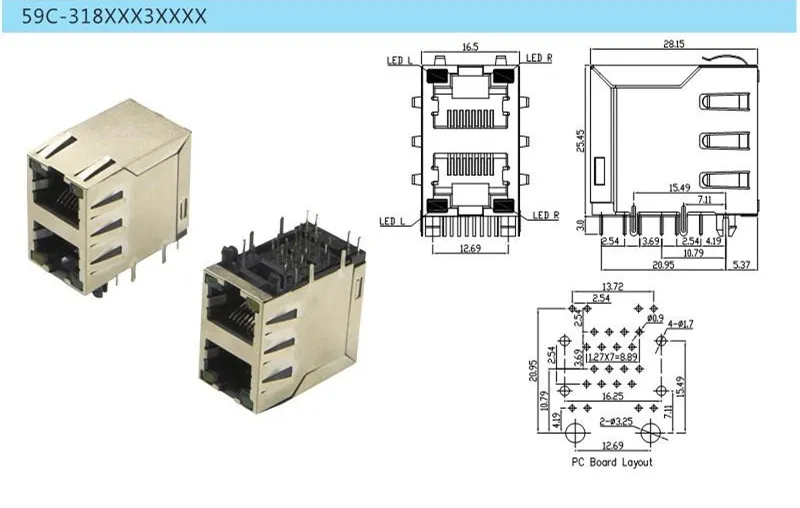

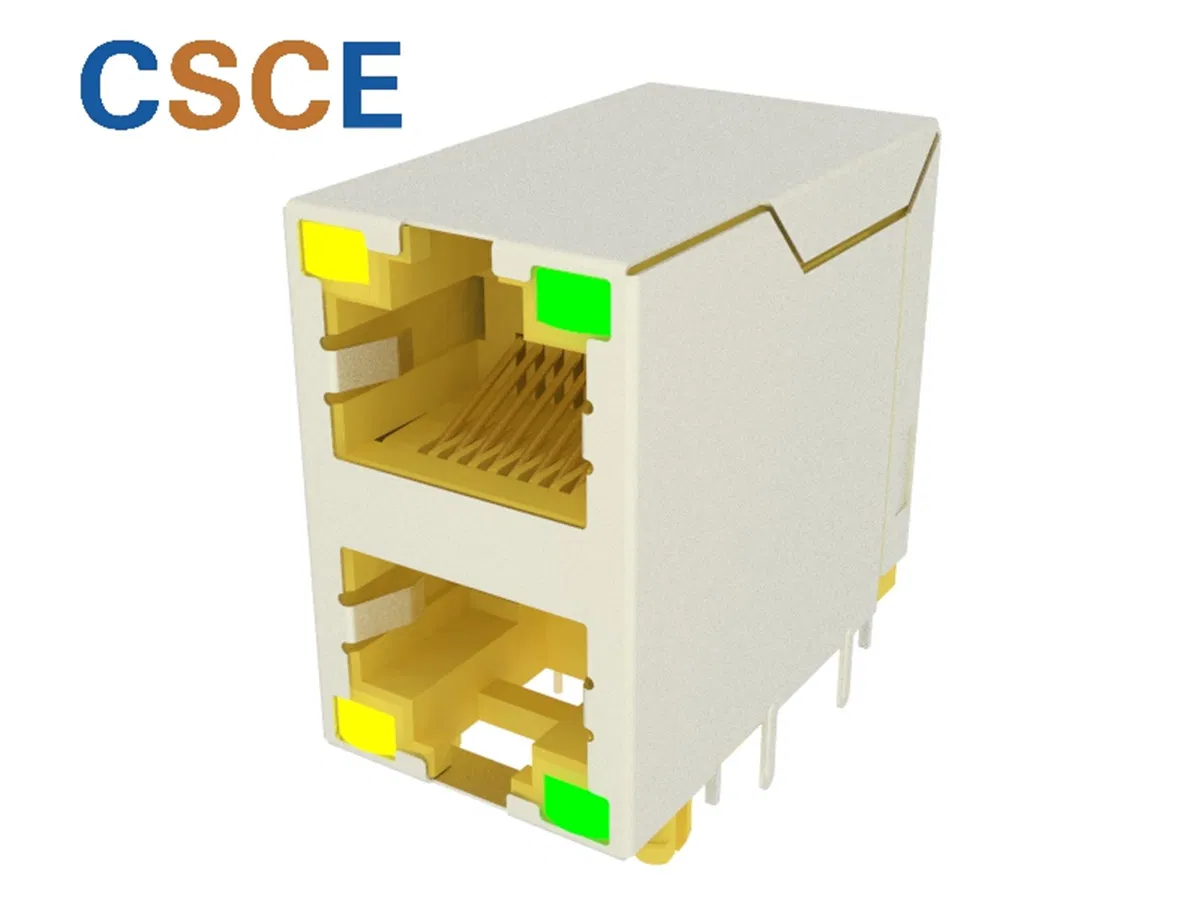

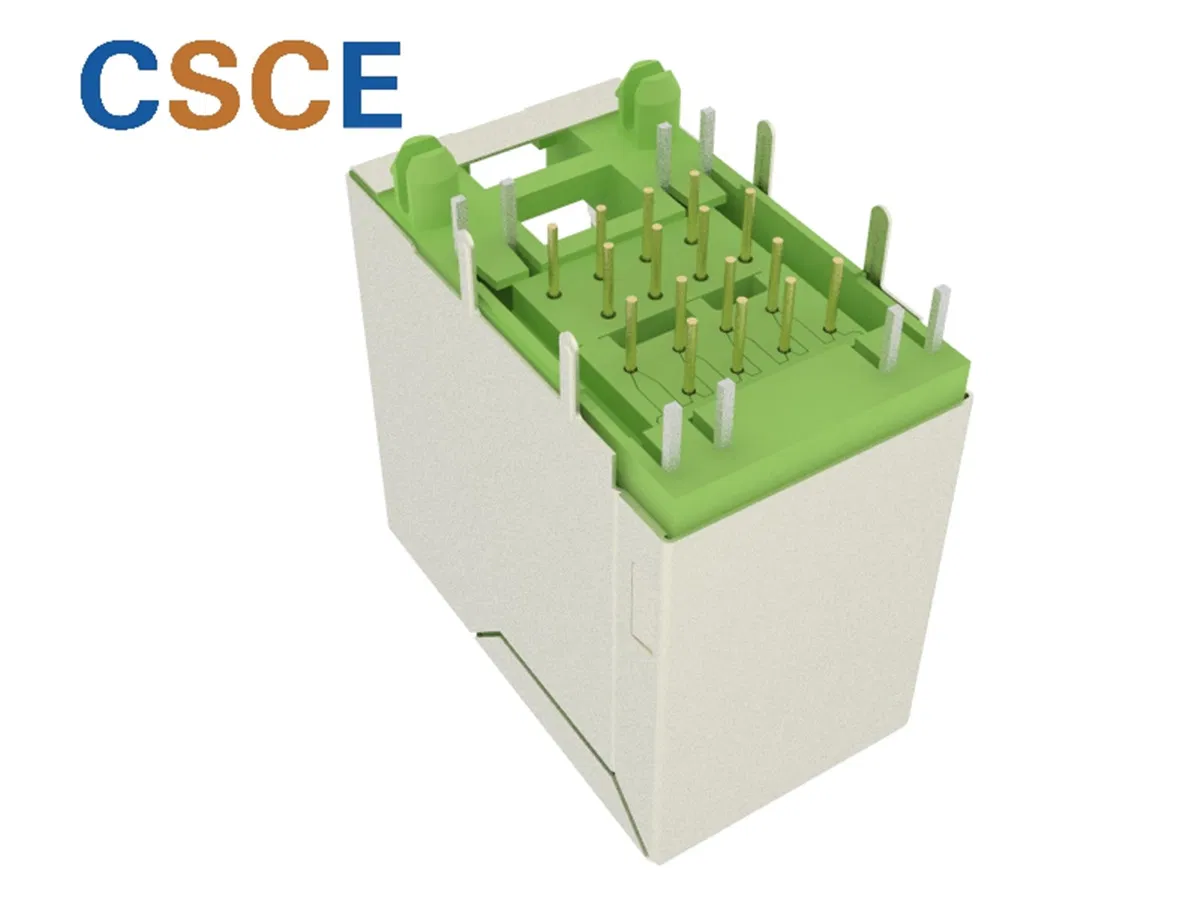

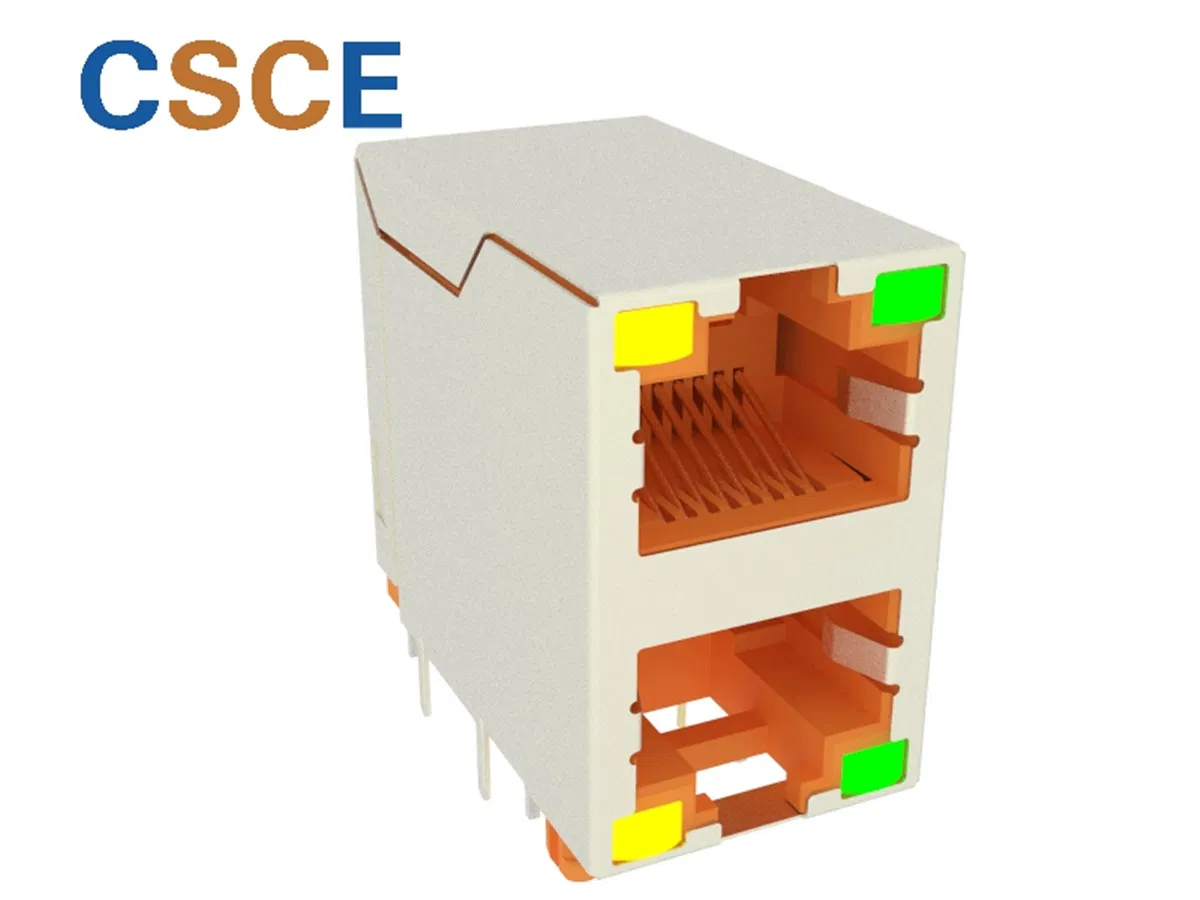

Multi-Ports 2X1 Stacked RJ45 Connector with LED and shield and EMI spring
Specification:
| RJ45 Connector specifications: | |
| Application - LAN | ETHERNET |
| Gender | Jack |
| No. of Ports | 2X1 |
| Number of position | 8 |
| Number of contacts | 2,4, 6,8 |
| Housing | PBT(UL94-V0),PA66(UL94-V0),PA46 (UL94-V0) |
| Contact Material | 0.45mm phosphor bronze gold plating over nickel |
| Shielding housing | 0.20-025mm thickness brass with nickel plated |
| Shield EMI Tabs | Option |
| LED | with |
| Gold Plating | Gold Flash,3u",6u",15u",30u" or 50u" or others |
| PCB Mount Angle | Side entry |
| Insertion Force | 2.2KG.F max |
| Retention Strength | 7.7KG.F min between jack and plug |
| Durability | 750 mating cycles min |
| Working Temperature | -40°C~+70°C |
| Storage Temperature | -10°C~+40°C Relative Humidity |
| RoHS Compliant | Yes |

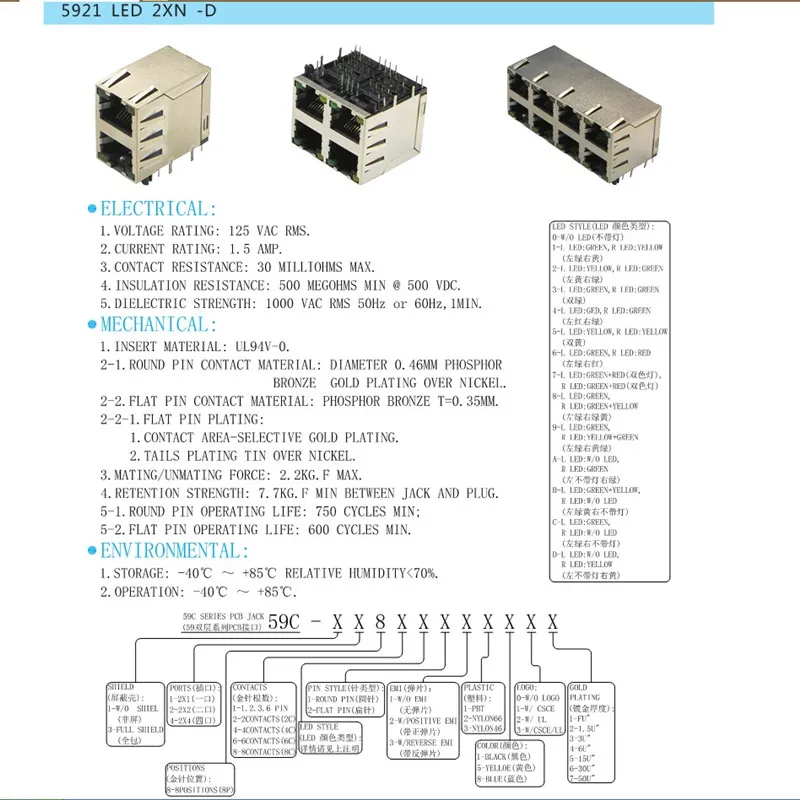

| Electrical: | |
| Current Rating | 1.5 Amps |
| Voltage Rating | 125VAC |
| Insulation Resistance | 500 MΩmin |
| Contact Resistance | 30 mΩmax |
| Withstanding Voltage | AC 1000V RMS 50Hz or 60Hz 1 min |
| RJ45 connector Application: | |
| Laptop | Telephone |
| Hub | Router |
| Printer | Broadband Switche |
| Server | Fitness Equipment |
| LCD and TV panel | Point of Sales Terminal |
| Set Top Box | Vending Machines |
| Surge protector | Television |
| Telecom box ATM Machine | Home Security |
| Security System | Copier |
| Video DVD product | |
Features and benefits:
RoHS Directive-compliant
Peak wave solder temperature rating 260°C
Suitable for Cat5, 6 UTP cable or better
