Item No.: SC278-5224S-LED-8P8C-1X1-B3.89

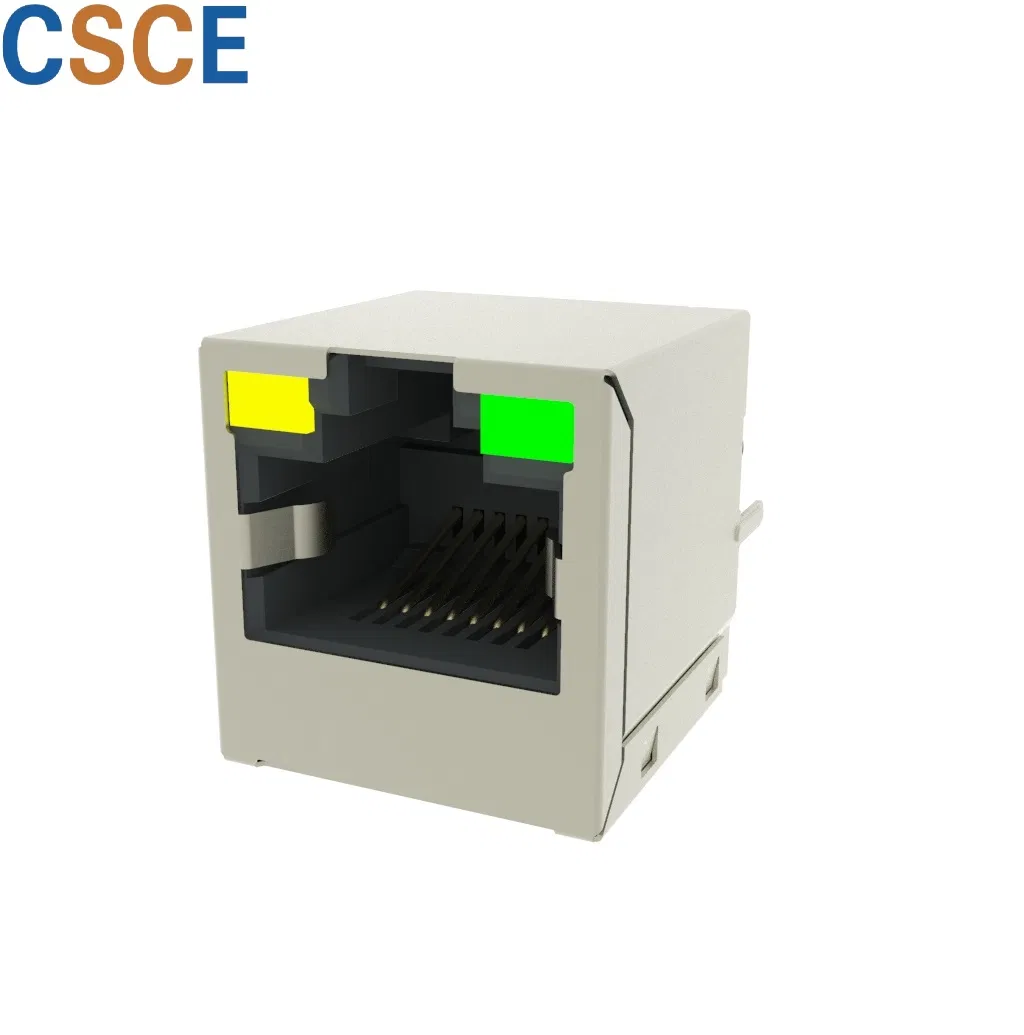

Description: Top entry 8P RJ45 pcb connector with LED ,180 degree single port RJ45 modular pcb jack with shield
Angle: 180 Degree
Color: Black, also can requested by customers

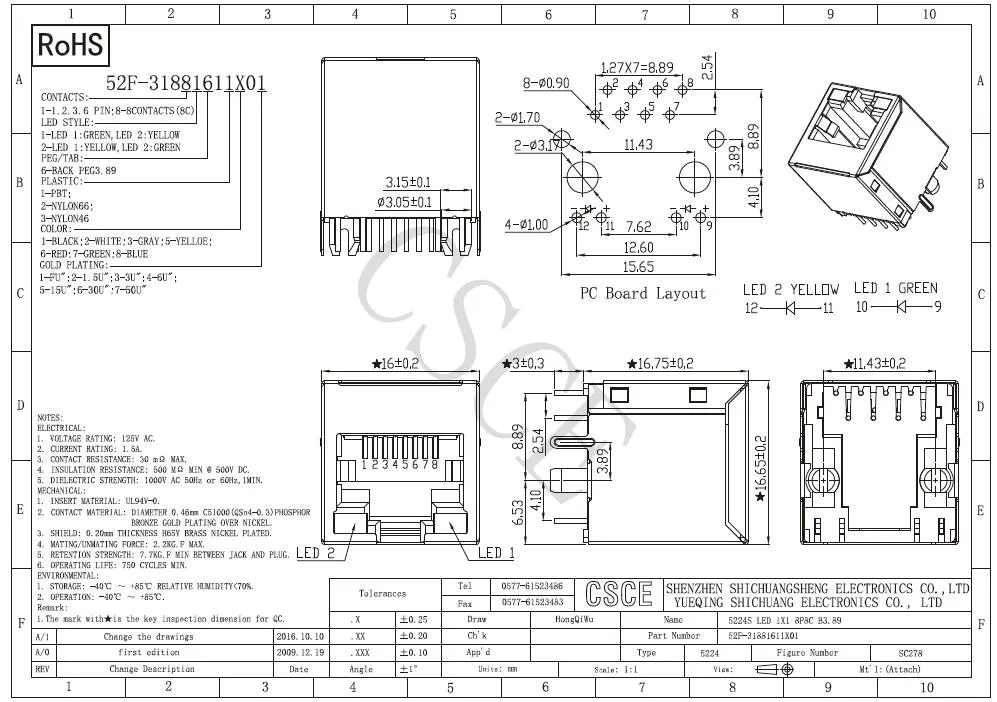

Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωma
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
3. Gold Plating: Gold Flash,1u",1.5u", 3u inch, 6u inch, 15u inch, 30u inch, 50u inch
