Products Description
Basic Info.
Model NO.
SC305-5321-8P8C-B
Support Card Number
All in One
Material
PBT and Brass
Gender
Female
Certification
UL,RoHS,ISO9001
Application
Switch, Router, PC Board, SDH, PDH, IP Phone etc
Poles
2-8
Pin
Phosphor Bronze
Housing
Plastic
Classification
RJ45 Connector
Transport Package
Tray, Carton
Specification
rj45 8p 1port
Trademark
CSCE
Origin
China
HS Code
8536909000
Production Capacity
1500000PCS/Month
Product Description

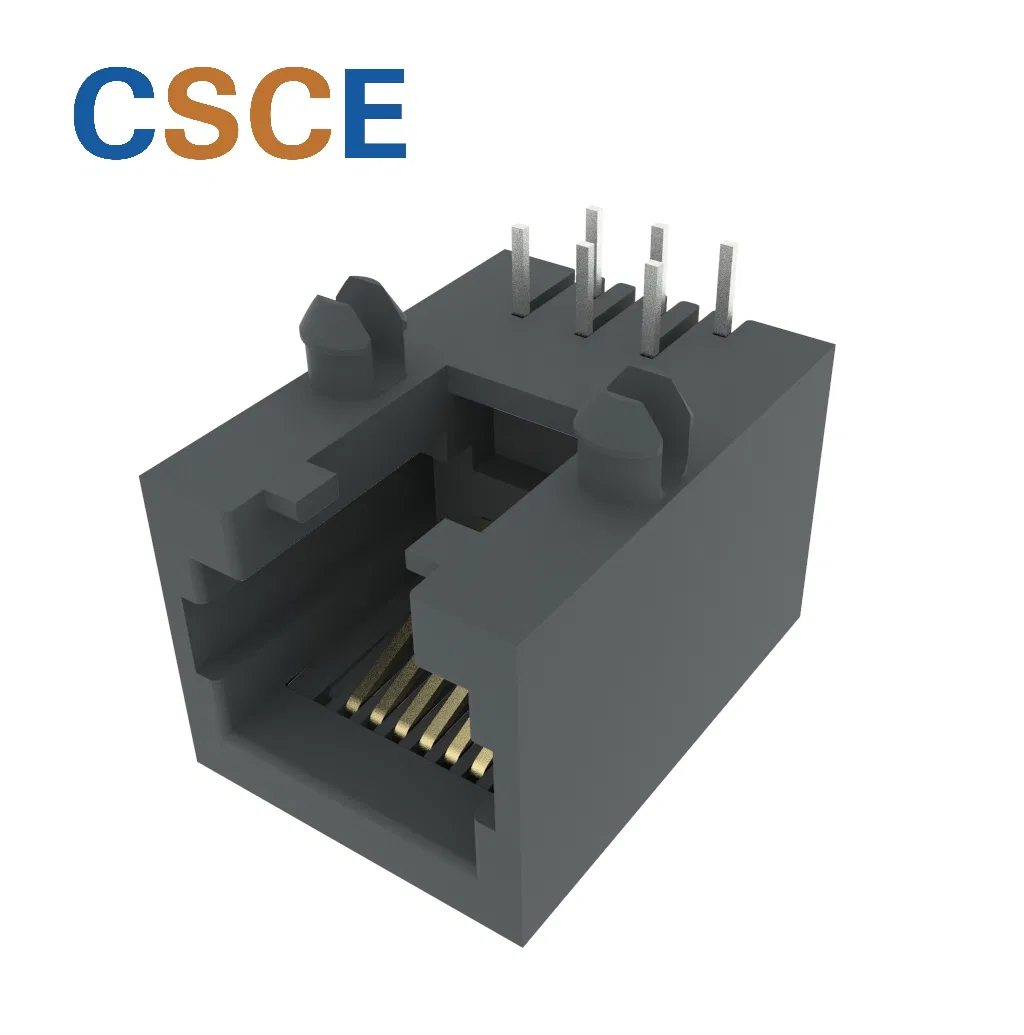

Item No.:SC305-5321-8P8C-B

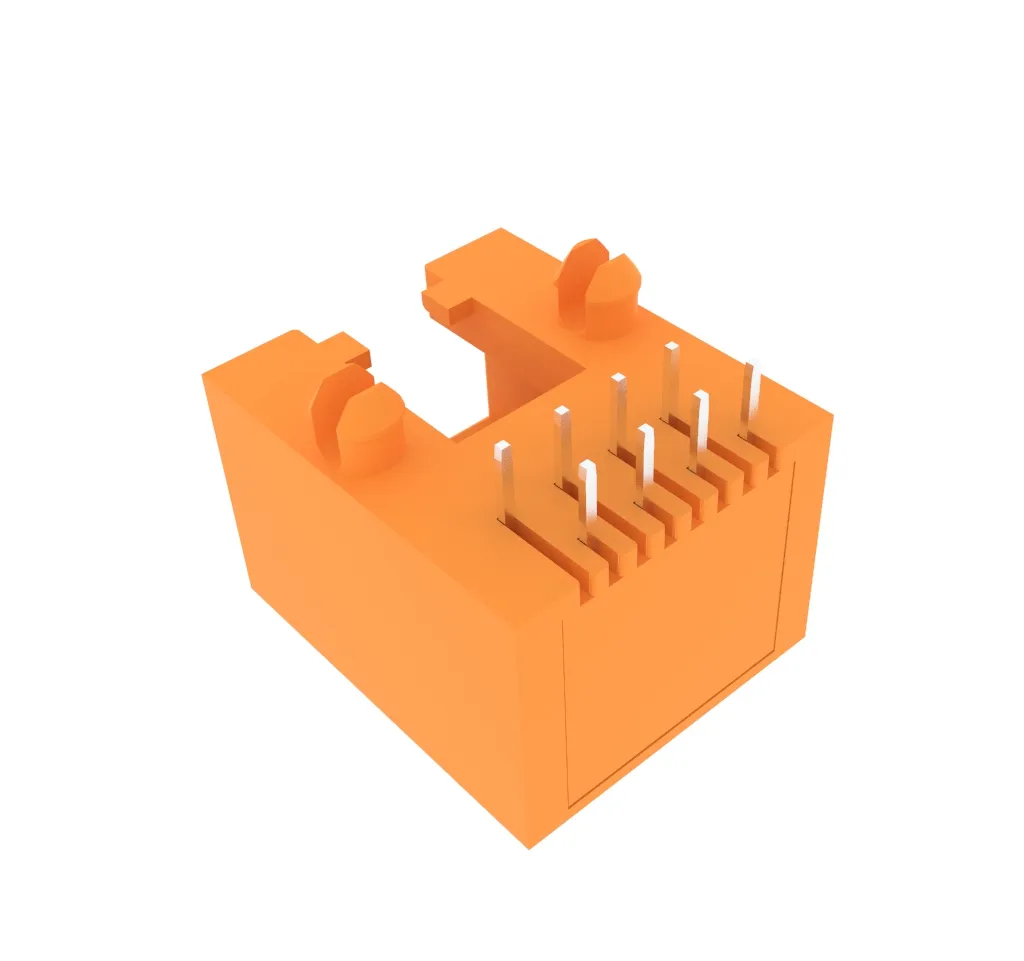

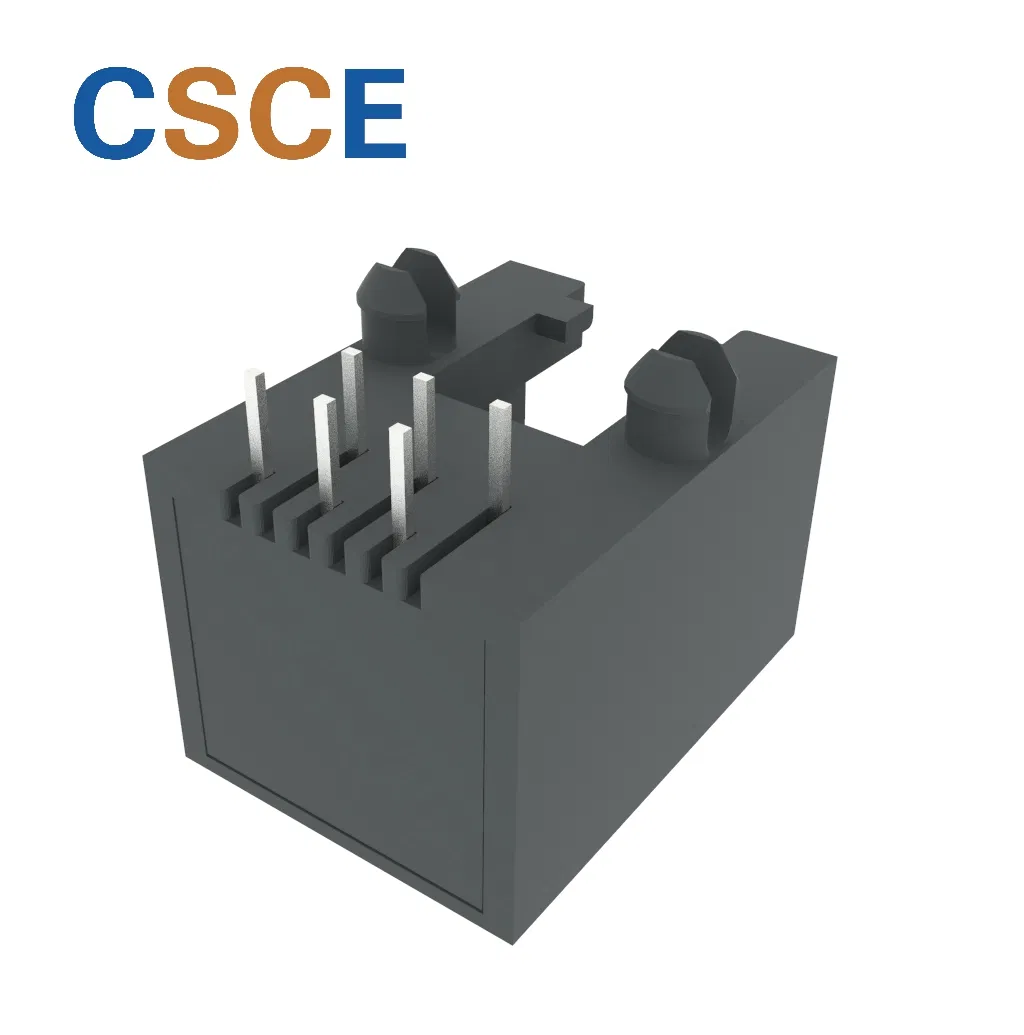

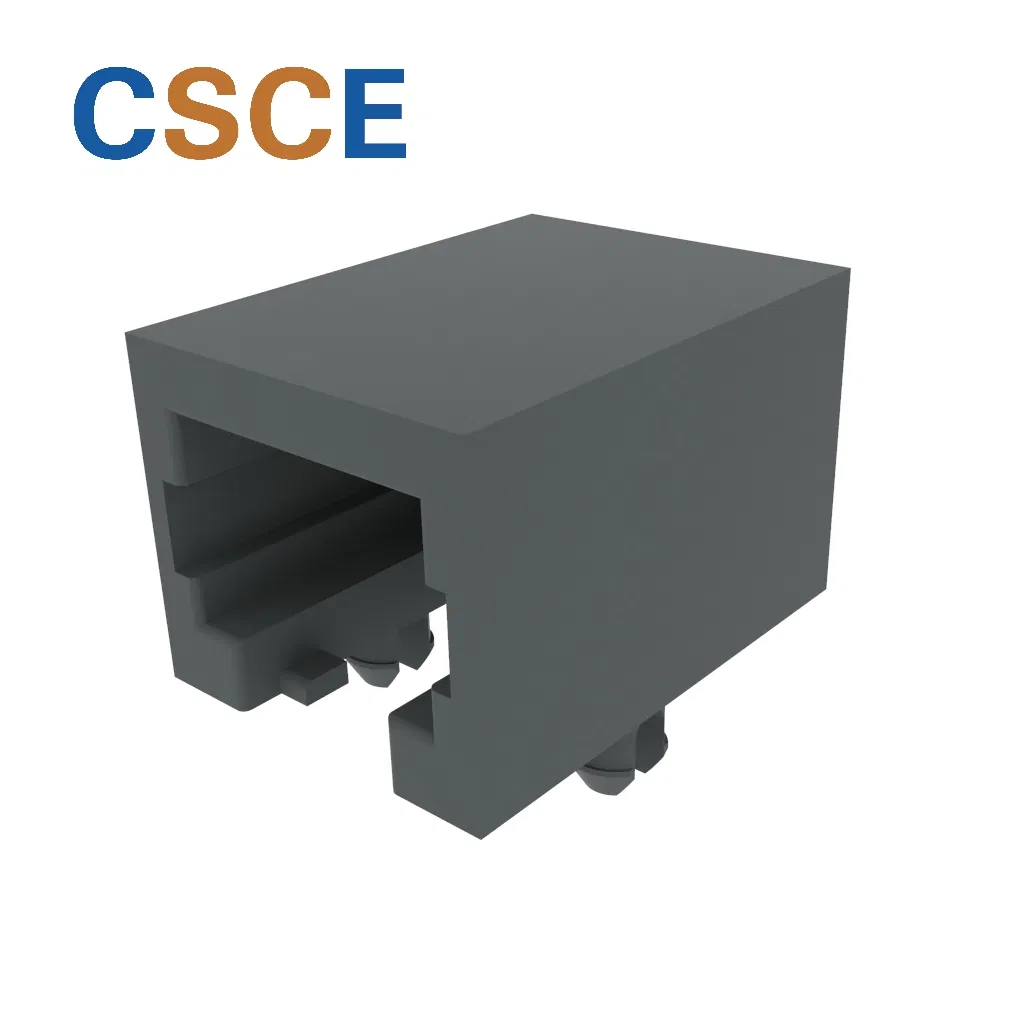

Description:Side entry single port tab down 8p rj45 pcb connector network jack with flat pin, 90 degree 1 port 8p rj45 modular pcb jack lan socket
Angle:90 Degree
Color: Black, also can requested by customers

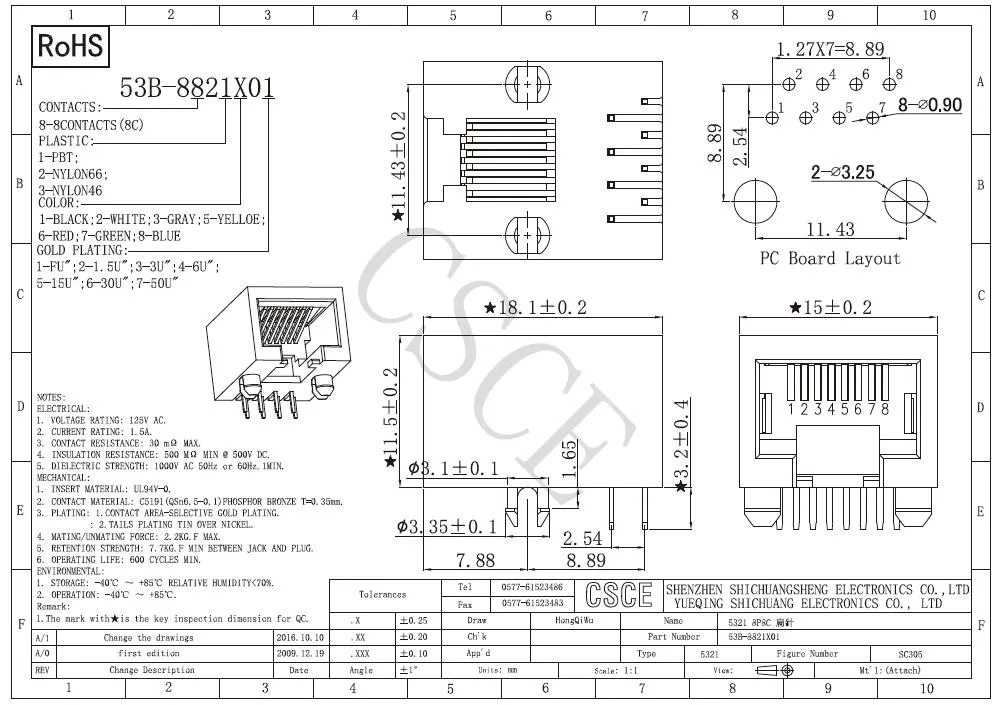

Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωma
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
3. Gold Plating: Gold Flash,1u",1.5u", 3u inch, 6u inch, 15u inch, 30u inch, 50u inc
Description:Side entry single port tab down 8p rj45 pcb connector network jack with flat pin, 90 degree 1 port 8p rj45 modular pcb jack lan socket
Angle:90 Degree
Color: Black, also can requested by customers
Specification
Electrical
1. Current Rating: 1.5 amps
2. Voltage Rating: 125vac
3. Insulation Resistance: 500Ωmin
4. Contact Resistance: 30Ωma
5. Withstanding Voltage: AC 1000V RMS 50Hz or 60Hz 1 min
Mechanical
1. Insertion Force: 2.2KG. F max
2. Retention Strength: 7.7KG. F min between jack and plug
3. Durability: 600 mating cycles min
Material
1. Housing: ABS RESIN(UL94V-0)
PBT(UL94V-0)
PA66(UL94V-0)
PA46(UL94V-0)
2. Contact Wire: Diameter 0.45mm phosphor bronze gold plating over
3. Gold Plating: Gold Flash,1u",1.5u", 3u inch, 6u inch, 15u inch, 30u inch, 50u inc
